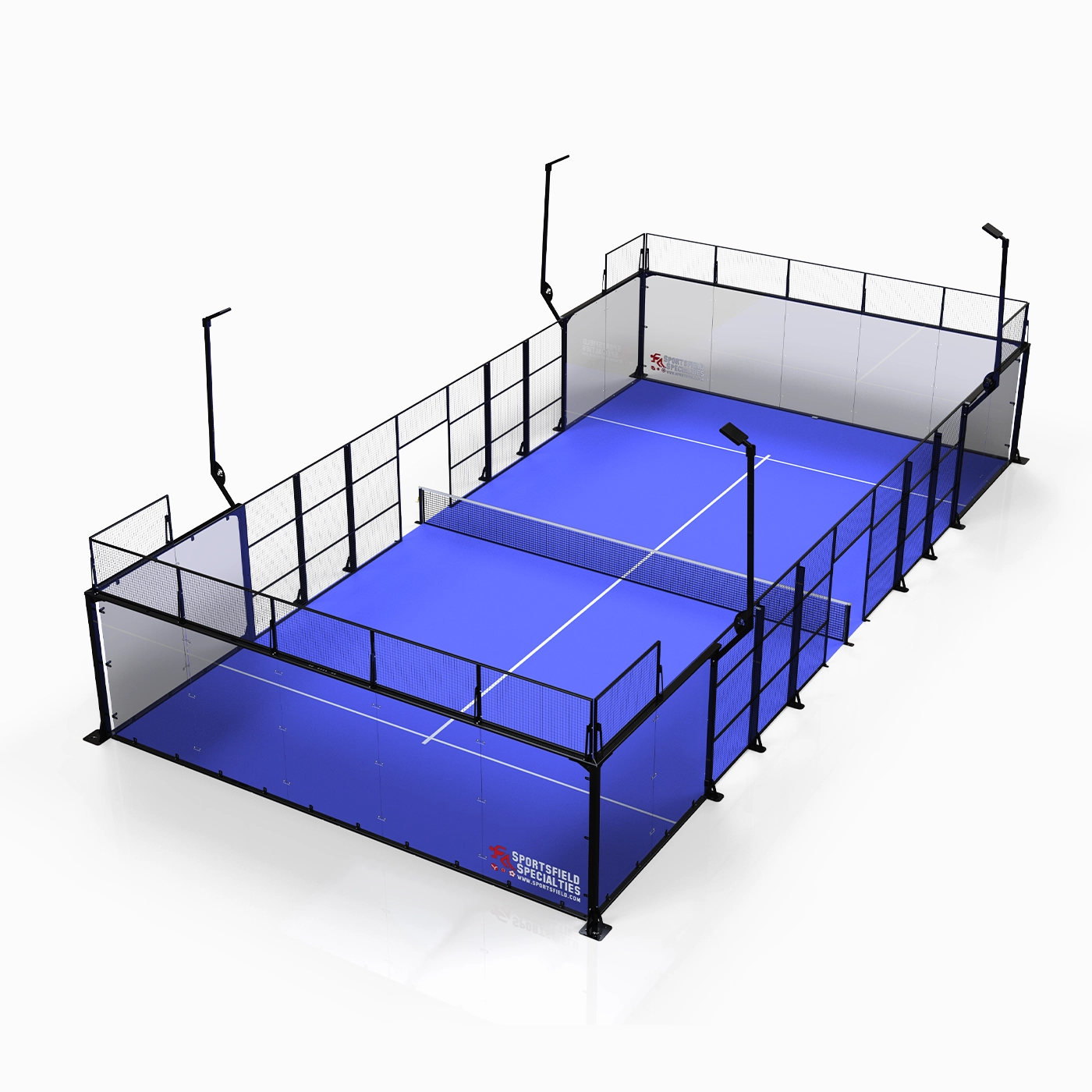

PaDelhi™ Panoramic Padel Court Systems
- Base plates and reinforcement gussets fabricated of ½” thick welded steel and anchored with 1/2” x 6”,
KH-EZ CRC Hilti Screw Anchors, Mechanically Galvanized - Corner 4 meter posts fabricated of 5” x 5” x 1/4” wall steel square tube with welded reinforcement gussets
- 3 meter posts fabricated of 2” x 4” 11 gauge steel rectangular tube with welded reinforcement gusset
- 3 meter light posts fabricated of 4” x 4” x 1/4” wall steel square tube with welded reinforcement gusset
- Top cross members fabricated of 2” x 6” x 3/8” wall steel rectangular tube with bolted inner splice connection and welded end caps
- Top side cross members fabricated of 2” x 6” x 3/8” wall steel rectangular tube
- Bottom end and side cross members fabricated of 2” x 4” 1/8” wall aluminum rectangular tube, anchored with 1/2” x 3”, KH-EZ CRC Hilti Screw Anchors, Mechanically Galvanized and include integrated drainage channels
- Top glass retainer brackets fabricated of 3/16” bent steel
- Bottom glass retainer brackets fabricated of 11 gauge bent steel
- Middle and corner glass support brackets fabricated of 3/8” (10mm) clear polycarbonate
- Light extension arms fabricated 2” x 4” 11 gauge steel rectangular tube with welded support gusset
- Four (4) 400-watt LED light fixtures with attachment slip fitter couplers and 30’L 14 gauge, 3 conductor wire lead connectors
- 2” x 2” square mesh, 1.844” x 1.844” opening, 0.156” thick (8-1/4 gauge) wire diameter, carbon steel with welded
1” x 2” 11 gauge steel rectangular tube frame and cross bracing - Mesh panel support brackets fabricated 11” gauge steel
- Nineteen (19) 1/2” (12mm) clear tempered glass panels, 2 meters (6’-6.5”) wide x 3 (9’ – 9.875”) meters high, polished edge
- Professionally pre-engineered to meet ASCE 7-16, risk category I, wind velocity up to 130 mph Exposure B and 106 mph Exposure C
- Padel Court posts and net, surface base plate mount, square internal wind posts, set of 2
- Synthetic turf, textured monofilament, pile height: 12mm, blue, green, or terracotta with inlaid white lines,
various additional colors available upon request - Standard super durable black powder coated finish, various additional colors available upon request
Description
Documentation
PDPNRMCV2 - PaDelhi™ Panoramic Padel Court System
| Title | Size | Date added | Download |
|---|---|---|---|
| PDSTMFT12 PaDelhi™ Padel Court Synthetic Turf Cut Sheet | 630.11 KB | 17-12-2025 | Download |
| PDPNRMCV2 PaDelhi™ Panoramic Padel Court System and Accessories 3-Part Spec | 37.52 KB | 17-12-2025 | Download |
| PDPNRMCV2 PaDelhi™ Panoramic Padel Court System Drawings and Foundation Details | 1.13 MB | 17-12-2025 | Download |
| PDPNRMCV2 PaDelhi™ Panoramic Padel Court System Cut Sheet | 2.08 MB | 17-12-2025 | Download |
| PDPNRMCV2 PaDelhi™ Panoramic Padel Court System | 6.30 MB | 17-12-2025 | Download |
| PDPIBV2 Padel Net Post Install Instructions | 413.48 KB | 17-12-2025 | Download |
PDLGHTV2 - PaDelhi™ Padel Court Lighting System
| Title | Size | Date added | Download |
|---|---|---|---|
| PDLGHTV2 PaDelhi™ Padel Court Lighting System Cut Sheet | 551.17 KB | 17-12-2025 | Download |
