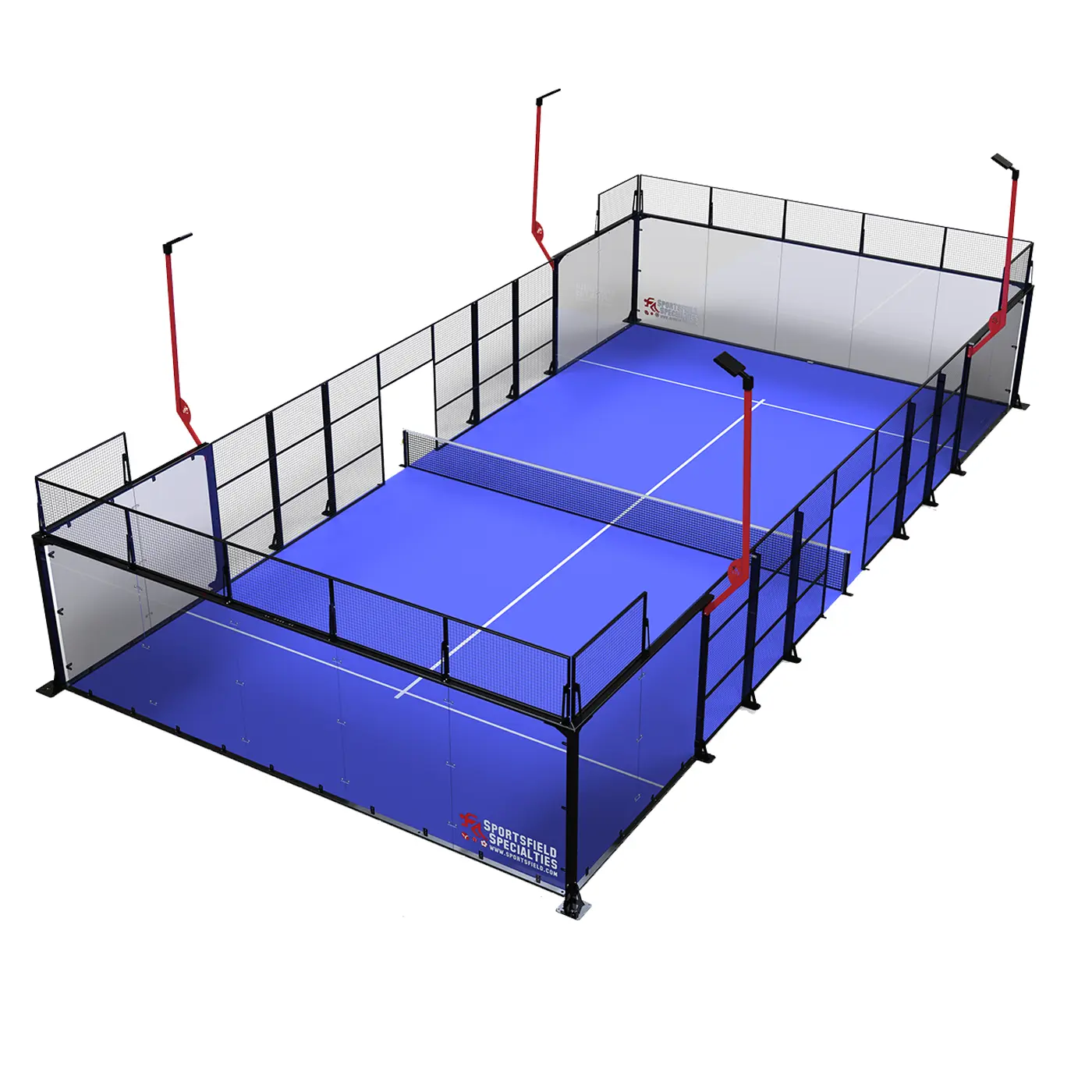

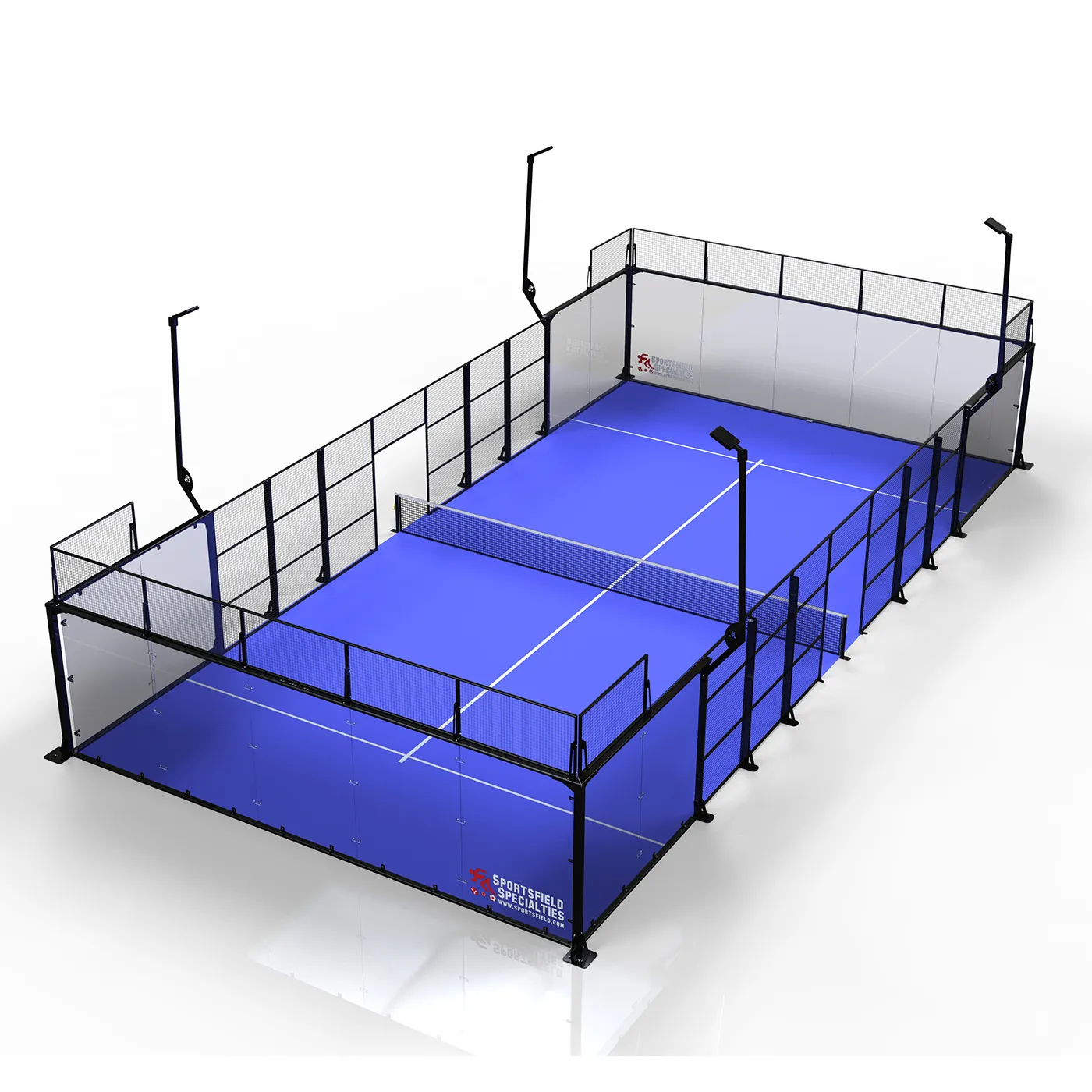

PaDelhi™ Outdoor Panoramic Padel Court Systems

  • Base plates and reinforcement gussets fabricated of ½” thick welded steel
  • 3-meter posts fabricated of 4” x 2” 11-gauge steel rectangular tube with welded reinforcement gusset
  • 4-meter corner posts fabricated of double 4” x 2” 5/16” wall steel rectangular tube with welded 4” x 2” x 54” 5/16” wall steel rectangular tube reinforcement
  • Top cross members fabricated of 4” x 6” 1/4” wall steel rectangular tube with welded reinforcement gussets
  • Bottom and side cross members fabricated of 4” x 4” 1/4” wall steel square tube
  • Top and bottom glass retainer brackets fabricated of 11 gauge bent sheet steel
  • Middle glass support brackets fabricated of 3/8″ (10mm) clear polycarbonate
  • 7 meter lighting posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded 4” x 2” x 54” 11
    gauge steel rectangular tube reinforcement
  • Four (4) 400-watt LED lighting fixtures with attachment coupler
  • 2” x 2” square mesh, 1.844” x 1.844” opening, 0.156” thick (8-1/4 gauge) wire diameter, carbon steel, bent and welded 11 gauge steel frame
  • Mesh panel posts fabricated of 4” x 2” 11” gauge steel rectangular tube with welded base
  • Nineteen (19) 3/8” (10mm) clear tempered glass, 2 meters wide x 3 meters high, polished edge
  • Professionally pre-engineered to meet ASCE 7 wind load rating up to 130 mph Exposure B and 106 mph Exposure C
  • Padel Court posts and net, surface base plate mount 2-7/8” round internal wind posts, set of 2
  • Polyethylene synthetic turf, pile height: 12mm, blue or green with inlaid white lines, various additional colors available upon request
  • Standard black and red powder coated finish, various additional colors available upon request



Description

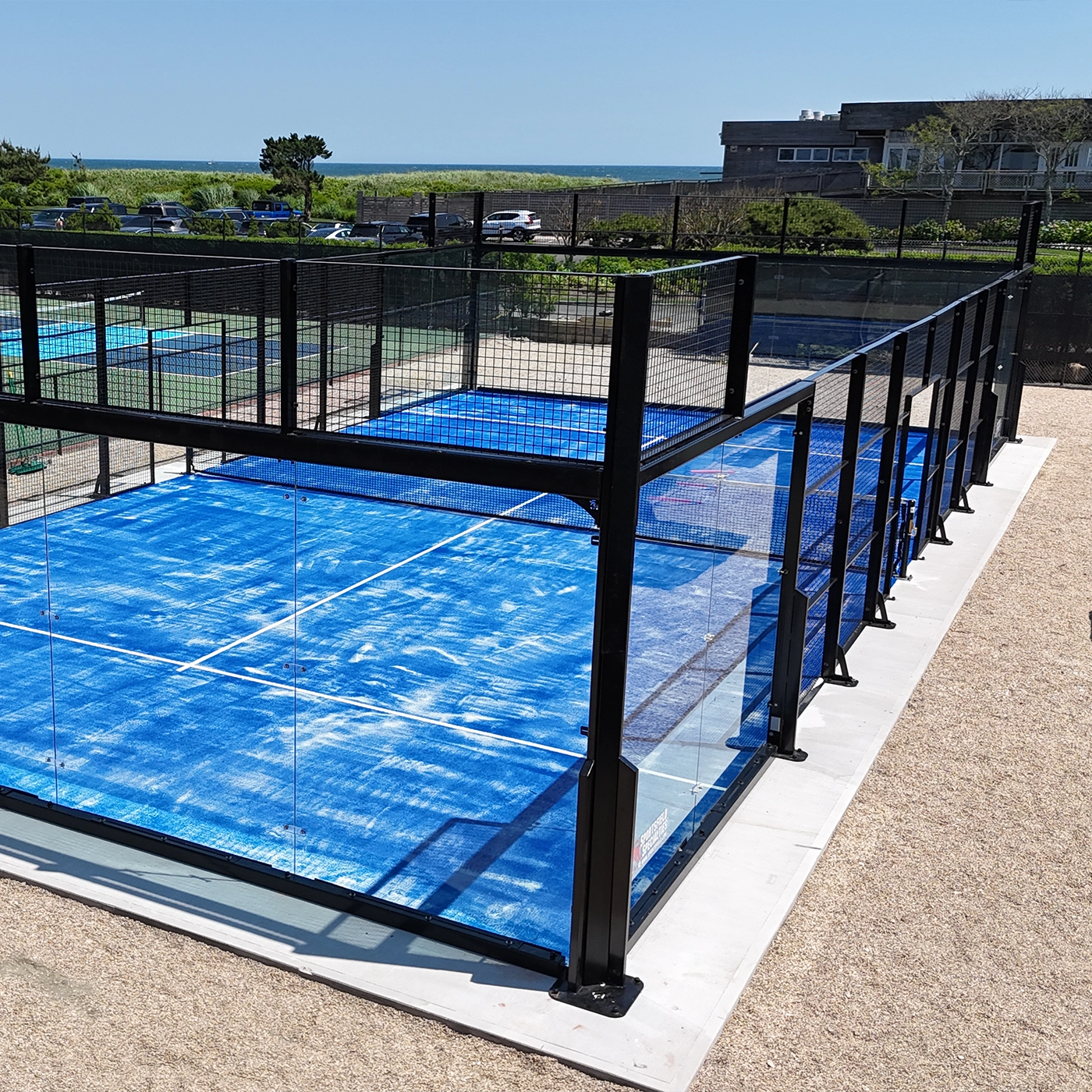

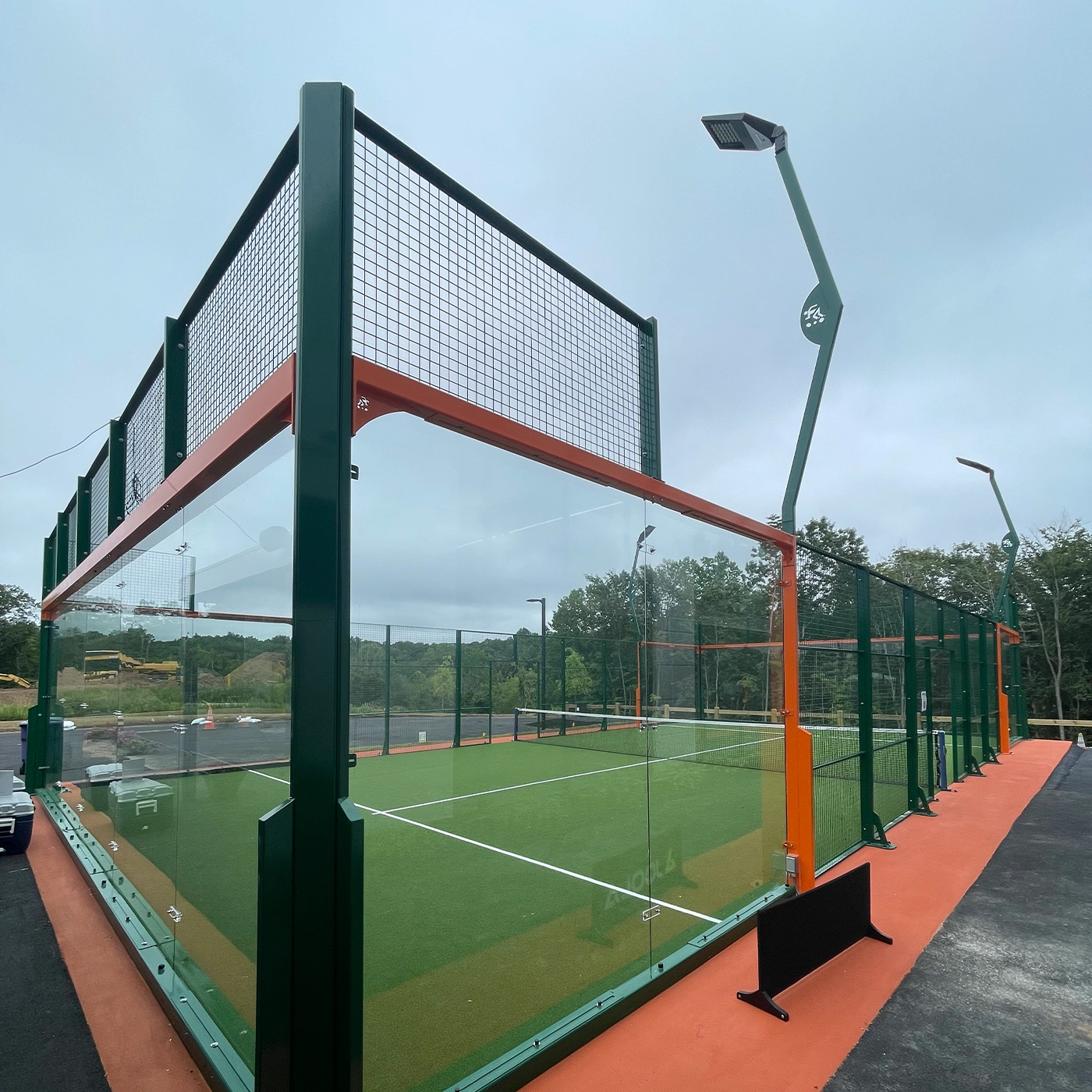

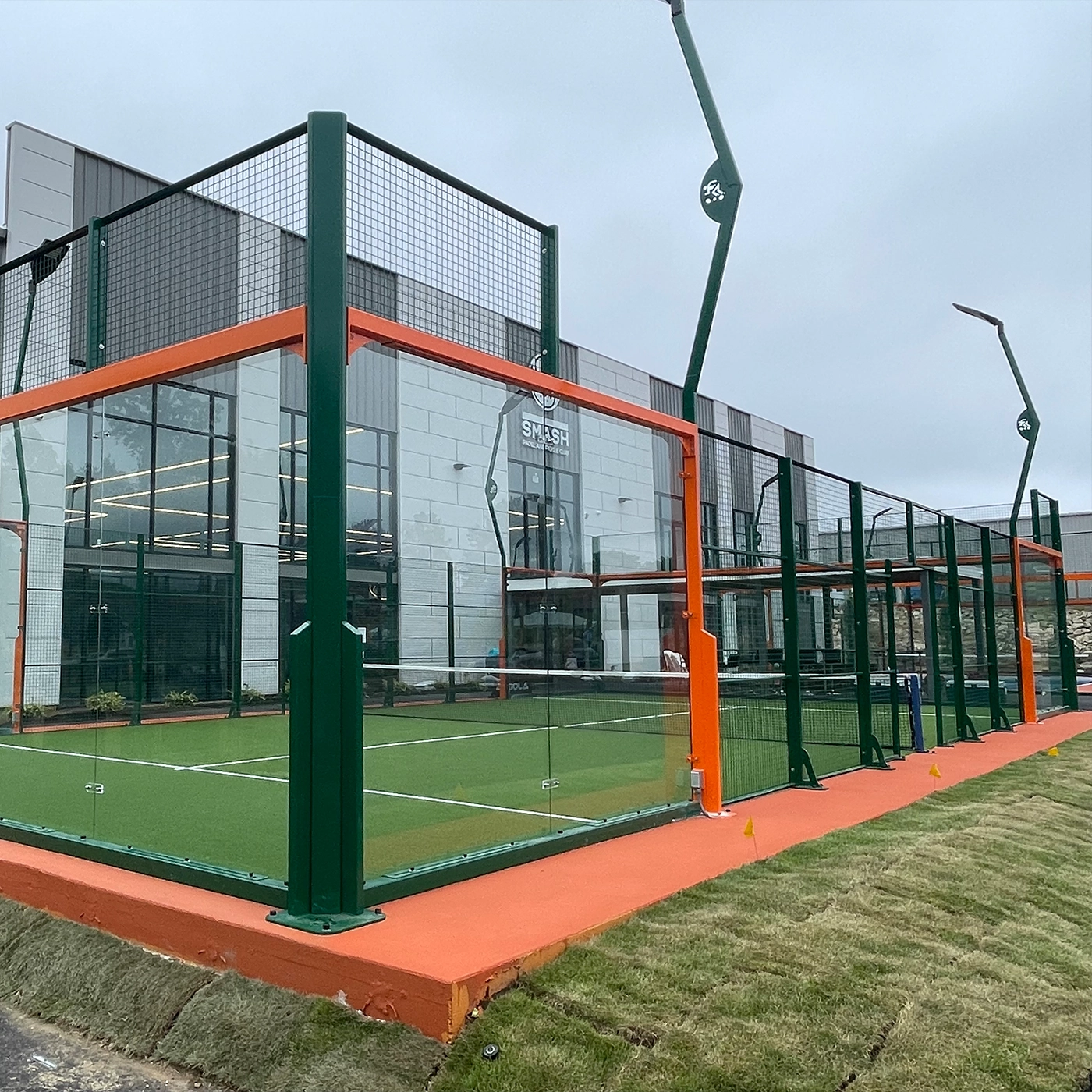

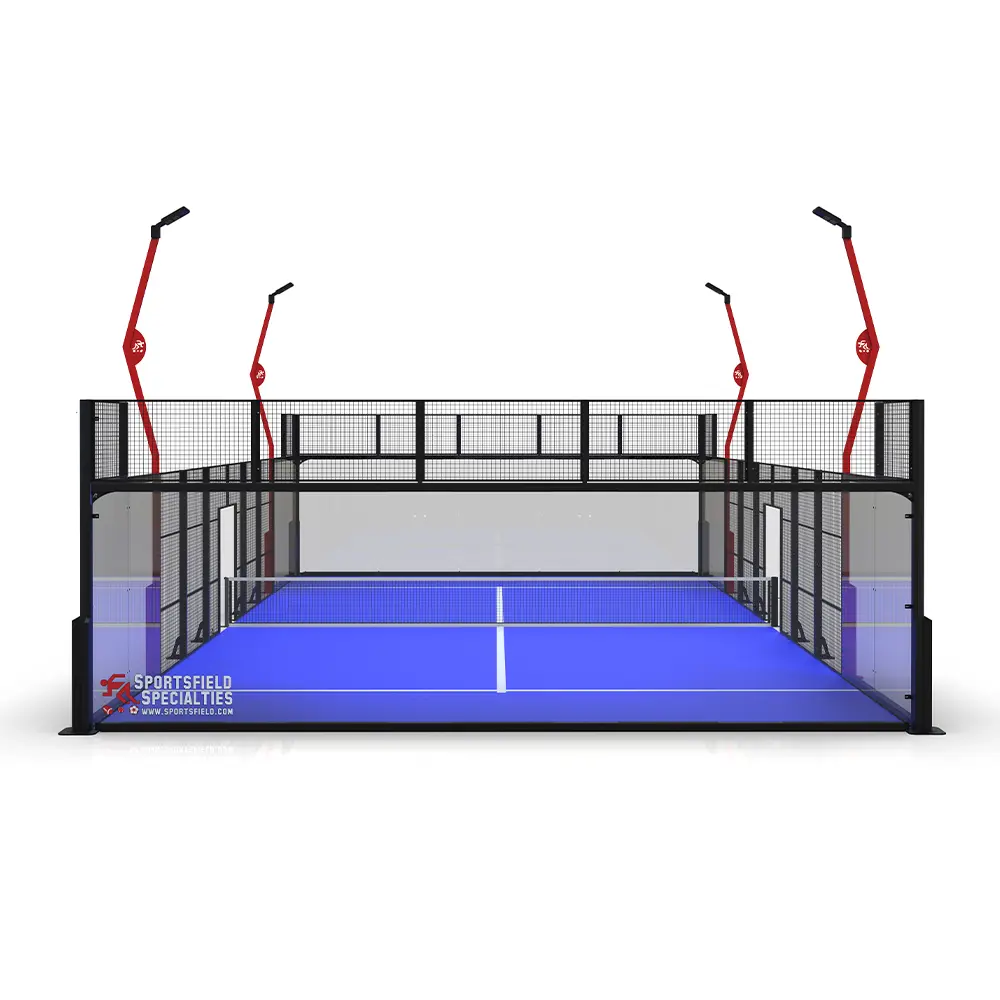

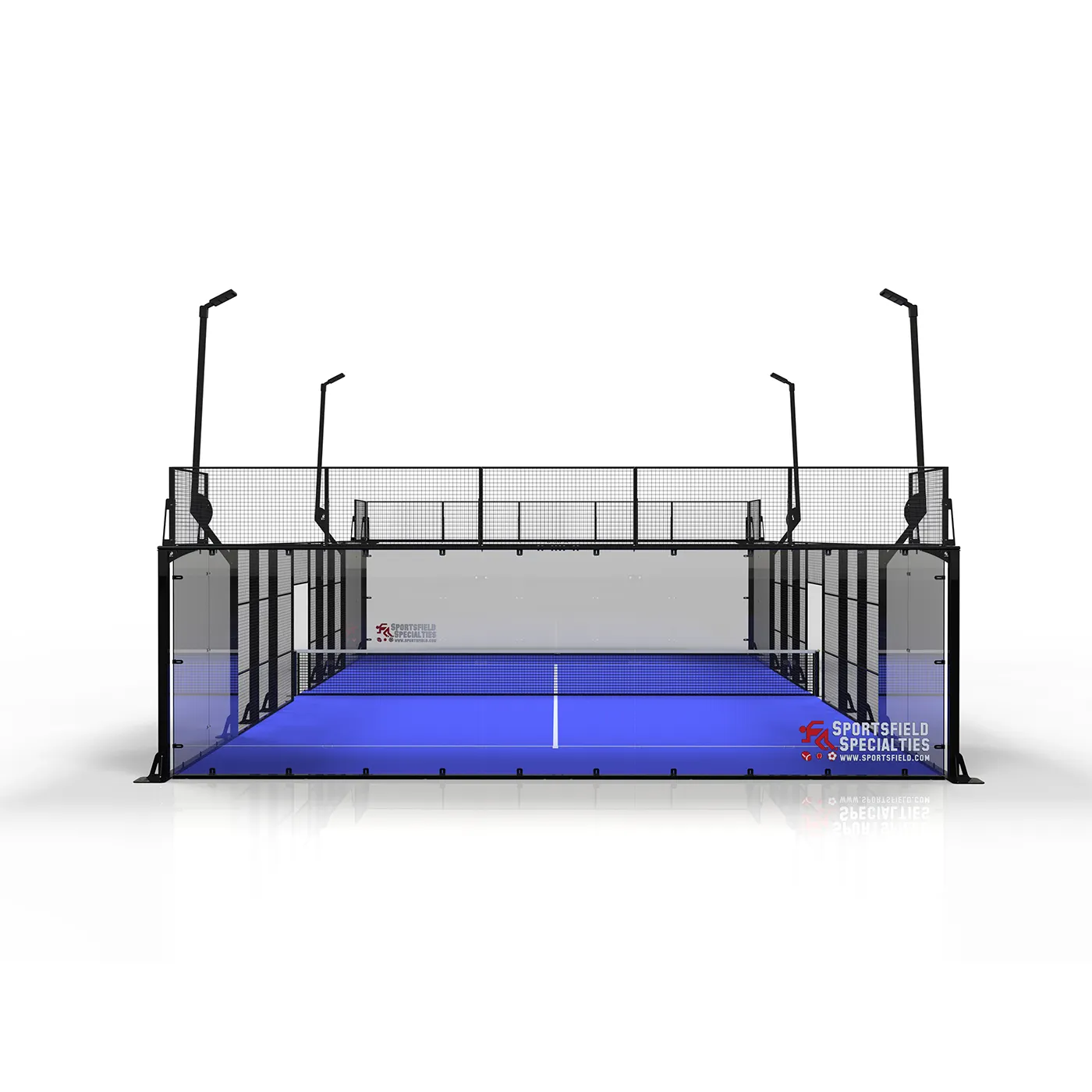

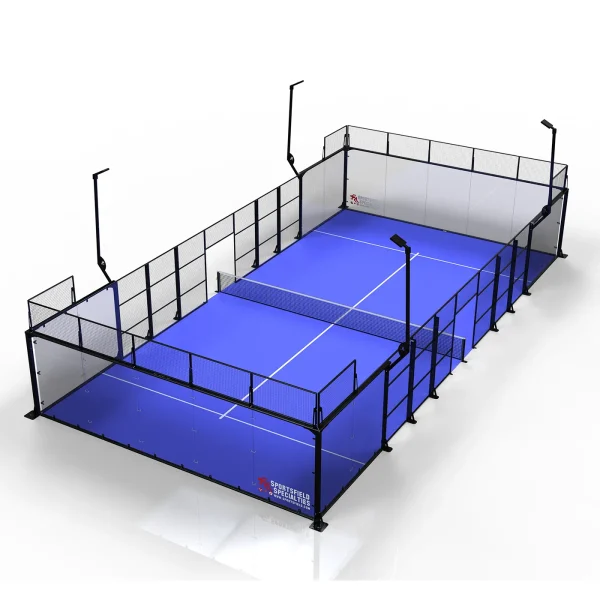

Padel is built around speed, visibility, and continuous play within a fully enclosed court. PaDelhi™ outdoor panoramic padel court systems by Sportsfield Specialties are designed to deliver a professional playing environment while enhancing the spectator experience. The panoramic glass back wall opens up sightlines across the court, allowing players, fans, and facility operators to enjoy clear views of the action without compromising the enclosed nature of the game.

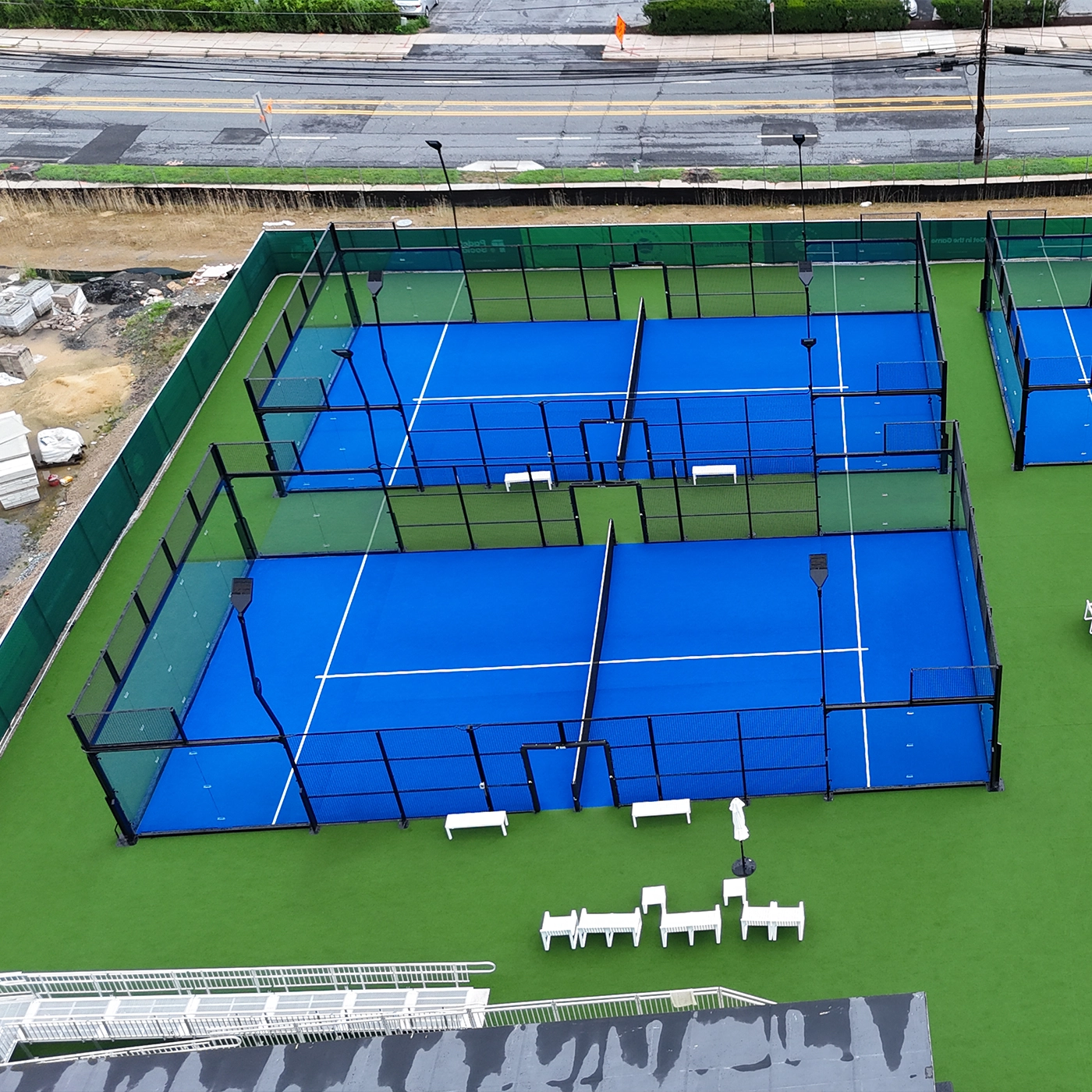

Engineered as a complete system, these courts include structural steel framing, tempered glass panels, integrated lighting, and synthetic turf surfacing. Each component is designed to work together to create a durable, high-performance court that holds up to frequent use in both indoor and outdoor environments. Pre-engineered construction and wind load compliance ensure reliable installation and long-term structural integrity for clubs, resorts, and multi-court facilities.

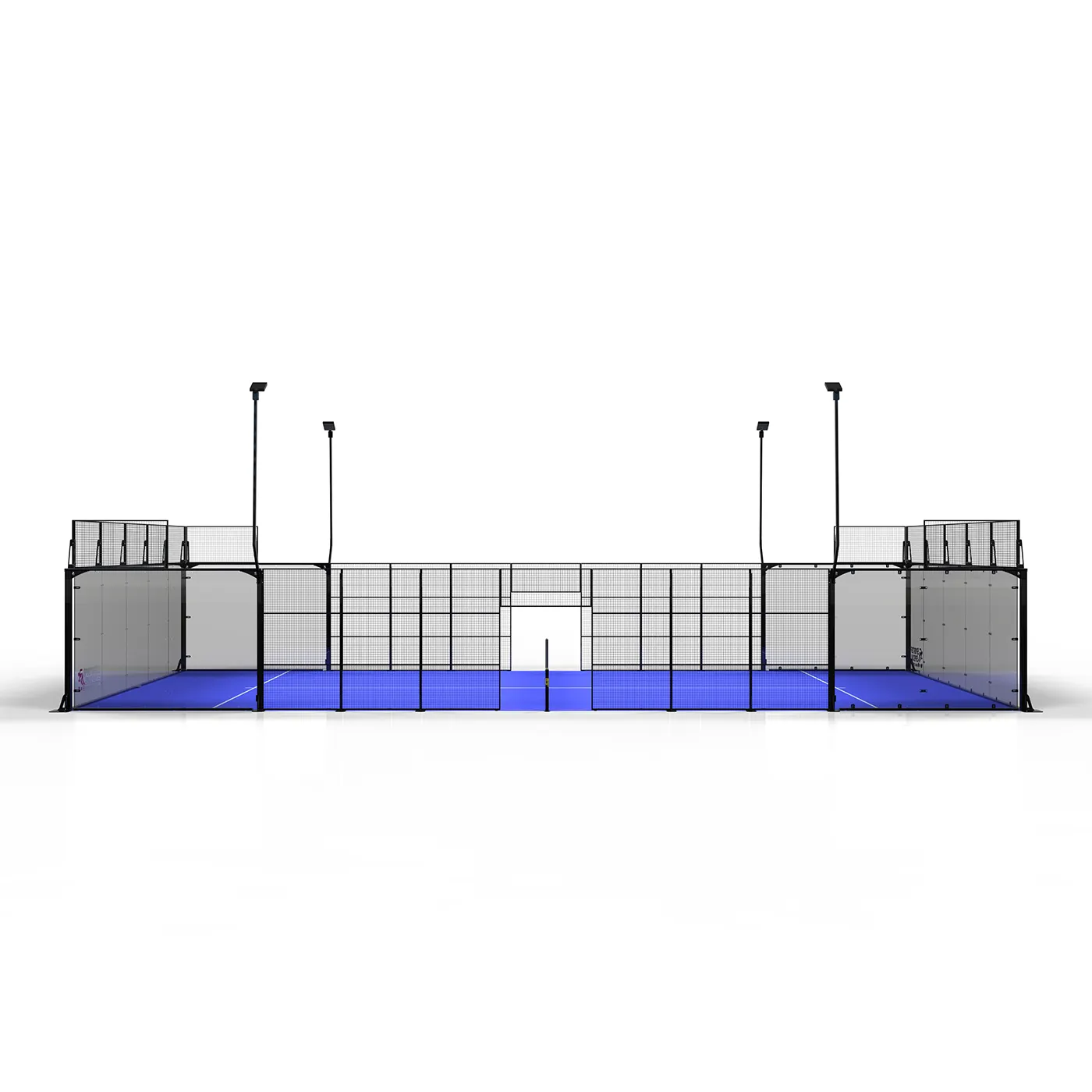

Unlike full panoramic designs that remove rear corner posts, this system retains structural posts at the back of the court, providing added support while still expanding visibility. The result is a balanced solution that delivers a clean, modern aesthetic with the durability needed for high-use facilities.

For a complete court safety and access solution, outdoor panoramic padel court systems can be paired with padel court entrance / exit and net post padding to protect players in high-contact areas. While the court system defines the playing environment and structure, padding helps cushion entry points and net posts, reducing the risk of impact injuries during fast-paced rallies and transitions.

By combining a high-performance court system with targeted safety components, facilities can enhance player experience, improve safety, and deliver a more polished and professional padel environment.

Documentation

PDCRTSYSPNRMC - PaDelhi™ Outdoor Panoramic Padel Court System

PDLGHT - PaDelhi™ Padel Court Lighting System
