PaDelhi™ Padel Court Systems
- Base plates and reinforcement gussets fabricated of ½” thick welded steel
- 3 meter posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded reinforcement gusset
- 4 meter posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded 4” x 2” x 54” 11 gauge steel rectangular tube reinforcement
- 4 meter corner posts fabricated of double 4” x 2” 11 gauge steel rectangular tube with welded 4” x 2” x 54” 11 gauge steel rectangular tube reinforcement
- 7 meter lighting posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded reinforcement gusset
- Four (4) 400-watt LED lighting fixtures with attachment coupler
- 2” x 2” square mesh, 1.844” x 1.844” opening, 0.156” thick (8-1/4 gauge) wire diameter, carbon steel, bent and welded 11 gauge steel frame
- Eighteen (18) 3/8” (10mm) clear tempered glass, 2 meters wide x 3 meters high, polished edge
- Professionally pre-engineered to meet ASCE 7 wind load rating up to 130 mph Exposure C
- Padel Court posts and net, 2-7/8” round internal wind posts, set of 2
- Polypropylene synthetic turf, pile height: 9/16” +/- 1/8”, florida blue with inlaid white lines, various additional colors available upon request
- Standard black and white powder coated finish, various additional colors available upon request
DESCRIPTION

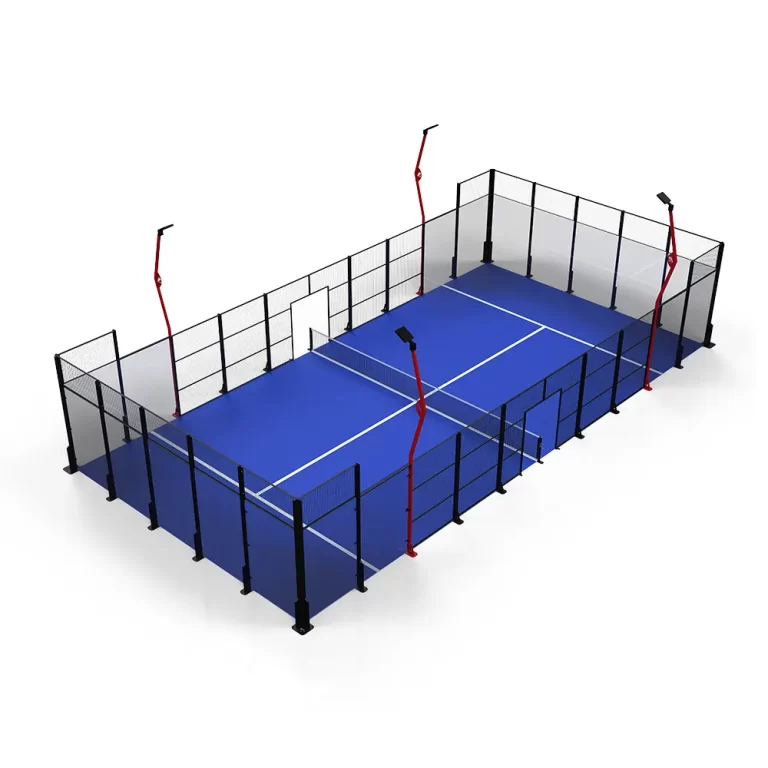

Introducing Sportsfield Specialties new line of PaDelhi™ Padel Court Systems proudly manufactured in the USA. Our Padel Court Systems feature an engineered design and user-friendly installation comprised of durable raw materials and high-quality manufacturing processes. Sportsfield’s PaDelhi™ Padel Court Systems incorporate everything needed for installation, including the structural posts with welded base plates, wire mesh frames, tempered glass panels, light posts/fixtures, posts/net, synthetic turf surfacing, and sand infill material.
Coming Soon: PaDelhi™ Panoramic and Portable Padel Court Systems
DOCUMENTATION
PDCRTSYSPLLR - PaDelhi™ Pillar Padel Court System
| Title | Size | Date added | Download |
|---|---|---|---|
| PDST PaDelhi™ Padel Court Synthetic Turf Cut Sheet | 552.46 KB | 03-10-2023 | Download |
| PDLGHT PaDelhi™ Padel Court Lighting System Cut Sheet | 551.34 KB | 03-10-2023 | Download |
| PDCRTSYSPLLR PaDelhi™ Pillar Padel Court System and Accessories 3-Part Spec | 29.64 KB | 10-11-2023 | Download |
| PDCRTSYSPLLR PaDelhi™ Pillar Padel Court System Cut Sheet | 1.25 MB | 10-11-2023 | Download |
