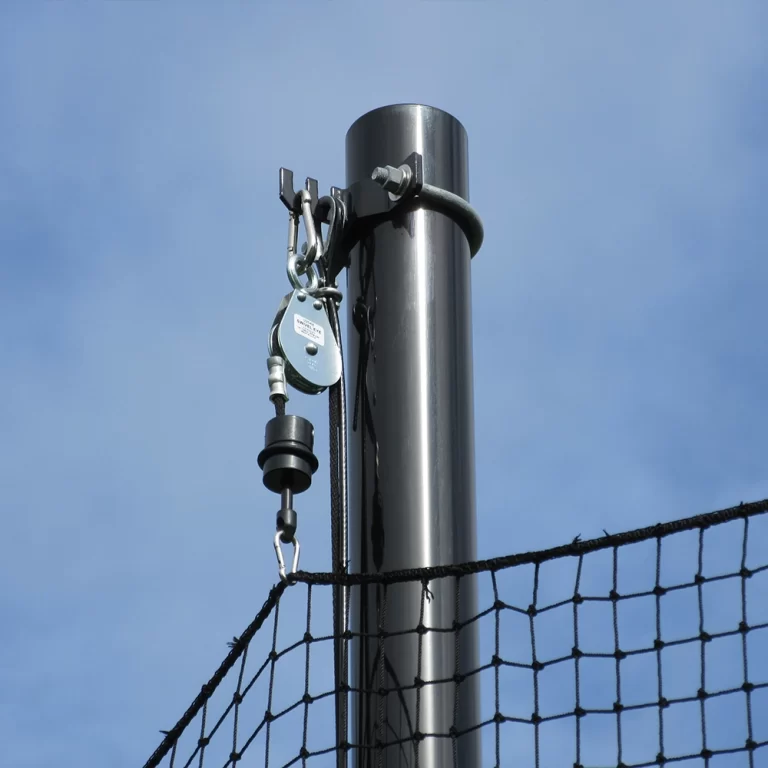

Patented StormGuard® multi-sport netting systems are the first and only system designed and engineered to respond to extreme weather by releasing its net before pole and/or hardware failure. Our innovative design uses a shear pin device attached to the net at the top of each pole. If winds exceed ~70 mph, the pin triggers the smaller drop shaft to release from a cylindrical steel weight; this causes the net to fall to the ground. Once the storm passes, the shear pin can be replaced and the netting can be raised back into position. Our StormGuard® systems utilize a tensioned vertical cabling network, which is attached to each pole, keeping the net taut to the pole and allowing for convenient installation and removal of the net. #36 gauge, twisted and knotted black nylon comes standard with this item.
Stamped and sealed engineer drawings are available with this product, which includes structural design details with concrete anchoring foundations based on your local building codes and soil conditions. StormGuard® multi-sport netting systems are professionally pre-engineered to meet the ASCE 7-10 wind rating up to 150 mph, Exposure B. Ask about custom StormGuard® systems that can meet higher wind speed and/or seismic requirements in some geographic areas.
STRAIGHT POLE
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS412 StormGuard 12 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 96.04 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.36 MB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 839.40 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System | 0.99 MB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS415 StormGuard 15 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 95.97 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.36 MB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 839.40 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System | 0.99 MB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS420 StormGuard 20 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.81 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.36 MB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 839.40 KB | 21-09-2023 | Download |
4 Straight Pole StormGuard Break-Away Ball Safety Netting System 105595.1-221212 | 0.99 MB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS625 StormGuard 25 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.69 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.78 MB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 811.72 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System | 828.63 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS630 StormGuard 30 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 95.85 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.78 MB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 811.72 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System | 828.63 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS635 StormGuard 35 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.70 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.78 MB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 811.72 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System | 828.63 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS640 StormGuard 40 Straight Pole Break-Away Ball Safety Netting System and Accessories Specification | 95.91 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.78 MB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System CAD | 811.72 KB | 21-09-2023 | Download |
6 Straight Pole StormGuard Break-Away Ball Safety Netting System | 828.63 KB | 21-09-2023 | Download |
ARC POLE
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS412A StormGuard 12 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.73 KB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.33 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.49 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System | 930.29 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS415A StormGuard 15 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.74 KB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.33 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.49 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System | 930.29 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS420A StormGuard 20 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.72 KB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 2.33 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.49 MB | 21-09-2023 | Download |
4 Arc Pole StormGuard Break-Away Ball Safety Netting System | 930.29 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS625A StormGuard 25 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.83 KB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System with Anchor | 0.98 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.84 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.34 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System | 711.79 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS635A StormGuard 35 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.89 KB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System with Anchor | 0.98 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.84 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.34 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System | 711.79 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS635A StormGuard 35 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 97.89 KB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System with Anchor | 0.98 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.84 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.34 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System | 711.79 KB | 21-09-2023 | Download |
Title | Size | Date added | Download |
---|---|---|---|
StormGuard Breakaway Ball Safety System Netting Cut Sheet | 1.48 MB | 21-09-2023 | Download |
BSS640A StormGuard 40 Arced Pole Break-Away Ball Safety Netting System and Accessories Specification | 96.06 KB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System with Anchor | 0.98 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System Installation Instructions 12-21-22 | 1.84 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System CAD | 1.34 MB | 21-09-2023 | Download |
6 Arc Pole StormGuard Break-Away Ball Safety Netting System | 711.79 KB | 21-09-2023 | Download |
